Wear Resistant Ceramic Cylinder
Reduce Pipeline Wear and Downtime with Ceramic Cylinder Liners
Severe abrasion is one of the biggest causes of pipeline failure in mining, power plants, and bulk material conveying systems. When slurry, ash, or mineral particles flow through steel pipes at high velocity, the pipe wall rapidly erodes, resulting in costly shutdowns and frequent replacements.
Our wear resistant ceramic cylinders are engineered to provide a durable internal lining for industrial pipelines and equipment. Manufactured from high-purity alumina ceramic using advanced forming and sintering processes, these liners deliver exceptional hardness, corrosion resistance, and long service life in demanding environments.
By integrating ceramic cylinders into steel pipes, operators can significantly extend equipment life and reduce maintenance costs.
Why Choose Alumina Ceramic Cylinder Liners?
Extreme Abrasion Resistance
The alumina ceramic material used in our cylinders offers hardness close to diamond on the Mohs scale. This makes the liner highly resistant to erosion caused by sand, ore particles, coal powder, or other abrasive materials.
Compared with conventional steel pipe liners, ceramic cylinders can dramatically improve wear resistance and extend operational lifespan.
Lower Maintenance and Operating Cost
Frequent pipeline replacement leads to:
production interruptions
higher labor cost
increased spare parts inventory
Installing ceramic cylinder liners reduces wear rates and helps plants operate longer between maintenance shutdowns.
Excellent Corrosion and Chemical Resistance
Alumina ceramic is chemically stable and resistant to strong acids and alkalis. This makes ceramic cylinders suitable for aggressive environments such as chemical processing, ash handling systems, and slurry pipelines.
High Strength with Reduced Weight
Ceramic liners offer high density and mechanical strength while remaining significantly lighter than steel. This reduces structural load on pipelines and equipment.
Typical Industrial Applications
Our ceramic cylinder liners are widely used in:
Mining and Mineral Processing
Ball mill discharge pipelines
Slurry transport pipelines
Cyclone feed pipes

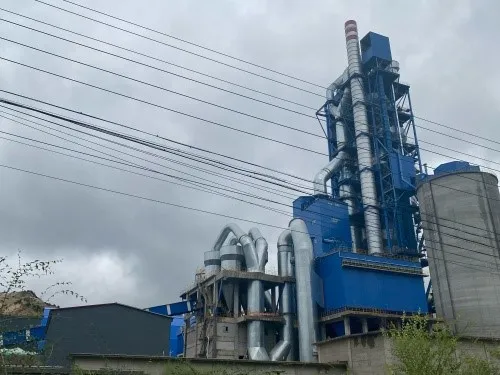

Power Generation
Pulverized coal pipelines
Bottom ash transport systems
Flue gas desulfurization pipelines
Bulk Material Conveying
Pneumatic conveying systems
Sand and powder transport pipelines
In these applications, ceramic cylinder liners protect the most vulnerable wear zones and improve overall equipment reliability.
Technical Specifications
Material: High purity alumina ceramic
Alumina content: 92% – 99%
Hardness: Mohs 9
Density: ~3.6 g/cm³
Inner diameter: 20 – 700 mm
Outer diameter: 32 – 760 mm
Length: 20 – 250 mm
High precision grinding allows dimensional tolerances within ±0.01 mm, ensuring smooth internal surfaces and optimal flow performance.
Custom Ceramic Cylinder Manufacturin
Every conveying system has different wear characteristics.
We offer full customization services including:
custom diameters
special length cylinders
high-precision grinding
integration with steel pipelines
Our engineering team can help determine the optimal ceramic lining design based on flow velocity, particle size, and operating temperature.
Why Global Buyers Choose Us
We are a professional advanced ceramics manufacturer with:
10,000 m² production facility
experienced engineering and manufacturing team
strict quality control for ceramic sintering and machining
export experience serving global industrial customers
Our goal is not only to supply ceramic parts but to deliver reliable wear protection solutions for demanding industrial systems.
Request a Quote for Ceramic Cylinder Liners
If your pipeline system suffers from rapid wear or frequent maintenance shutdowns, ceramic cylinder liners may be the long-term solution.
Send us your:
pipeline diameter
working temperature
material type
flow velocity
Our engineers will provide a custom ceramic liner solution and competitive quotation.
