Filter Disc for Mining: Enhancing Efficiency in Tailings Filtration
In modern mining filtration, efficiency and reliability are the key to achieving stable production and reducing operational costs. As a result, more mining plants are shifting from traditional filter cloth systems to vacuum ceramic filtersequipped with advanced ceramic filter discs.

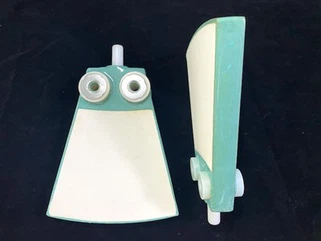

The filter disc for mining acts as the core component of a vacuum ceramic filter. Made from high-strength and corrosion-resistant ceramic materials, these discs ensure excellent filtration performance even under harsh tailings environments. The fine, uniform pores on the ceramic filter plate enable efficient solid-liquid separation, resulting in higher vacuum suction, lower moisture content in the filtered cakes, and improved recovery of valuable minerals.
Key Advantages of Ceramic Filter Discs
High Filtration Efficiency
Compared with conventional filter media, ceramic discs offer faster filtration rates and higher vacuum levels, effectively increasing throughput in tailings dewatering.
Extended Service Life:
Ceramic materials provide exceptional resistance to wear, corrosion, and chemical attack, ensuring long-term operation and reducing maintenance frequency.
Low Energy Consumption:
The stable vacuum system and low moisture output reduce energy requirements for subsequent drying and handling processes, saving costs for mining operators.
Cleaner Production:
By replacing disposable filter cloths, ceramic filter discs support sustainable mining operations with reduced waste and improved environmental performance.
Applications in Tailings and Concentrate Filtration
The filter disc for mining is widely used in tailings dewatering, iron ore concentrate filtration, copper, gold, and nickel mine processing. Whether in beneficiation plants or tailings management systems, vacuum ceramic filters equipped with these discs deliver consistent, high-quality results.
Technical Specifications (Customizable)
Material: High-purity alumina ceramic
Pore Size: 0.5–2.0 μm
Thickness: 25–30 mm
Shape: Sector plate
Chemical Resistance: Excellent in acidic and alkaline media
Please check the video of ANDA ceramic fiter plates :
Regular Specification
|
Specification(mm)
|
Model |
|||||
|
1# |
2# |
3# |
4# |
5# |
6# |
|
|
A |
250 |
375 |
483 |
555 |
560 |
603 |
|
B |
130 |
228 |
295 |
338 |
295 |
294 |
|
C |
109 |
166 |
239 |
276 |
240 |
235 |
|
d |
11 |
14 |
14 |
14 |
14 |
14 |
|
e |
14 |
14 |
14 |
19 |
19 |
19 |
|
H |
255 |
305 |
441 |
441 |
540 |
619 |
|
L |
24.4 |
24.4 |
30 |
30 |
32 |
32 |
|
Filter substrate material |
BFA,WFA,SiC |
|||||
|
Fiter pore size range |
1μm,2μm,5μm,8μm,10μm,15μm |
|||||
Product type
Ordering Information
To order, provide your equipment model ( Roxia or Metso or CEC ), plate dimensions, and filtration needs. We will recommend the best ceramic vacuum filter plate for your application.
